GermanTec Automotive develops and manufactures German-certified armoured vehicles for defense, police, and special operation forces.

Our mission is to deliver next-generation mobility, protection, and reliability to our partners in Europe and beyond. GermanTec vehicles are engineered, certified, and quality-assured in Germany according to international standards, guaranteeing performance and security for the most demanding missions.

We believe that in a globalized world, international experience and international standards are of essence. That is one of the reasons why we do what we do. Advanced automotive mobility and security solutions require substantial know how, a supply chain of the highest quality and an international network of professionals with a proven track record.

  • Certified in Germany: ISO 9001:2015 – ISO 14001:2015 – ISO 45001:2018 – ISO 3834-2:2005

  • Proven designs under STANAG 4569 and CEN 1063 standards

  • Operational mobility across NATO terrains

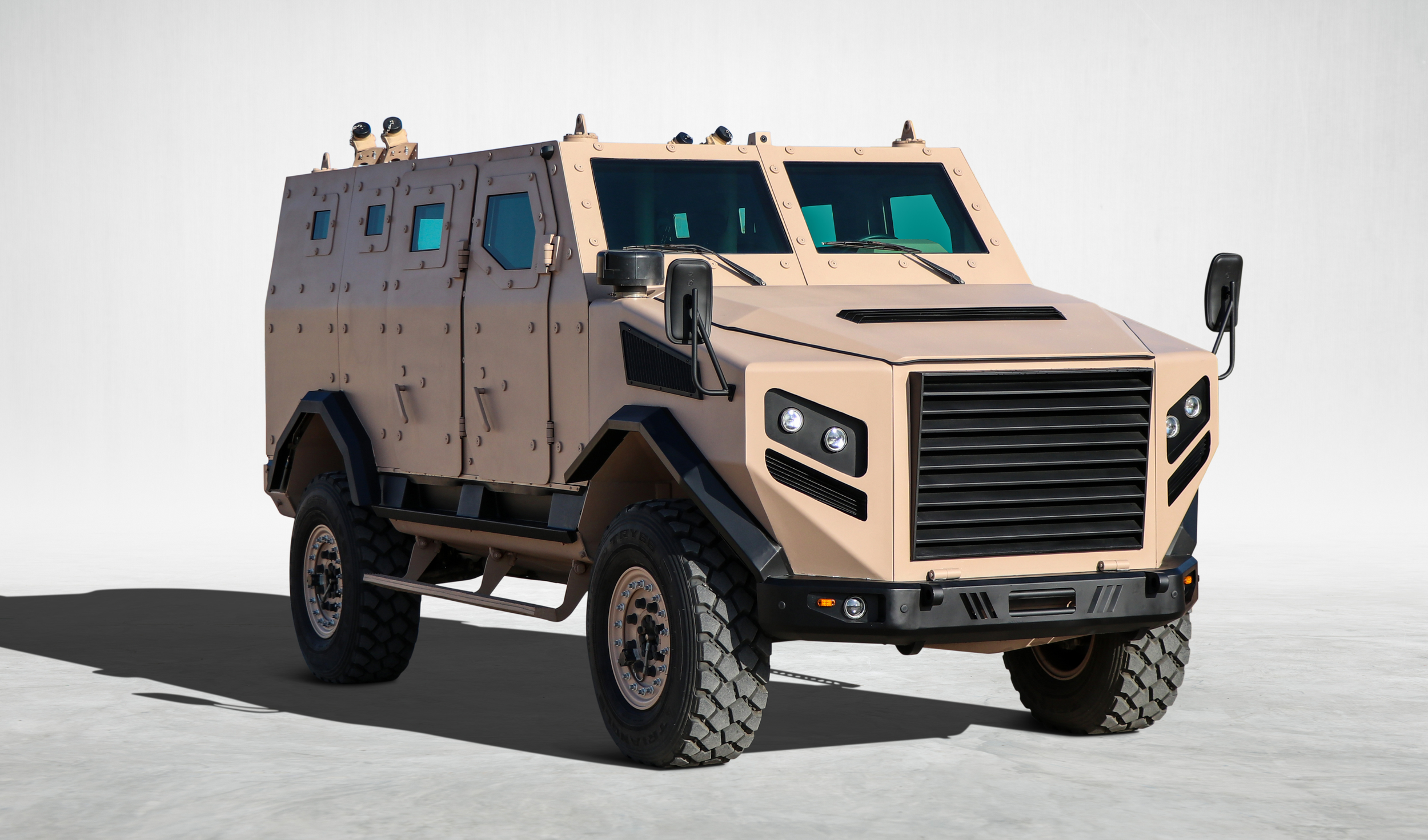

It's an introduction to the HMTV vehicle

OVERVIEW

HIGH MOBILITY TACTICAL VEHICLE

  • Role Suitability

    1. Variants

    2. Design and Safety

    3. Mine Blast Simulation

    4. Technical Specifications

    5. Standards & Options

    6. Transportation

POLICE & MILITARY STANDARD & OPTIONAL FEATURES

  • Mine Blast Certified Seats

    1. Central Tire Inflation System (CTIS)

    2. Ballistic Glas / Options

    3. Camera System with Recording

    4. GPS Sensor Camera System

    5. Thermal Infrared Camera System

    6. Communication Equipment Installation

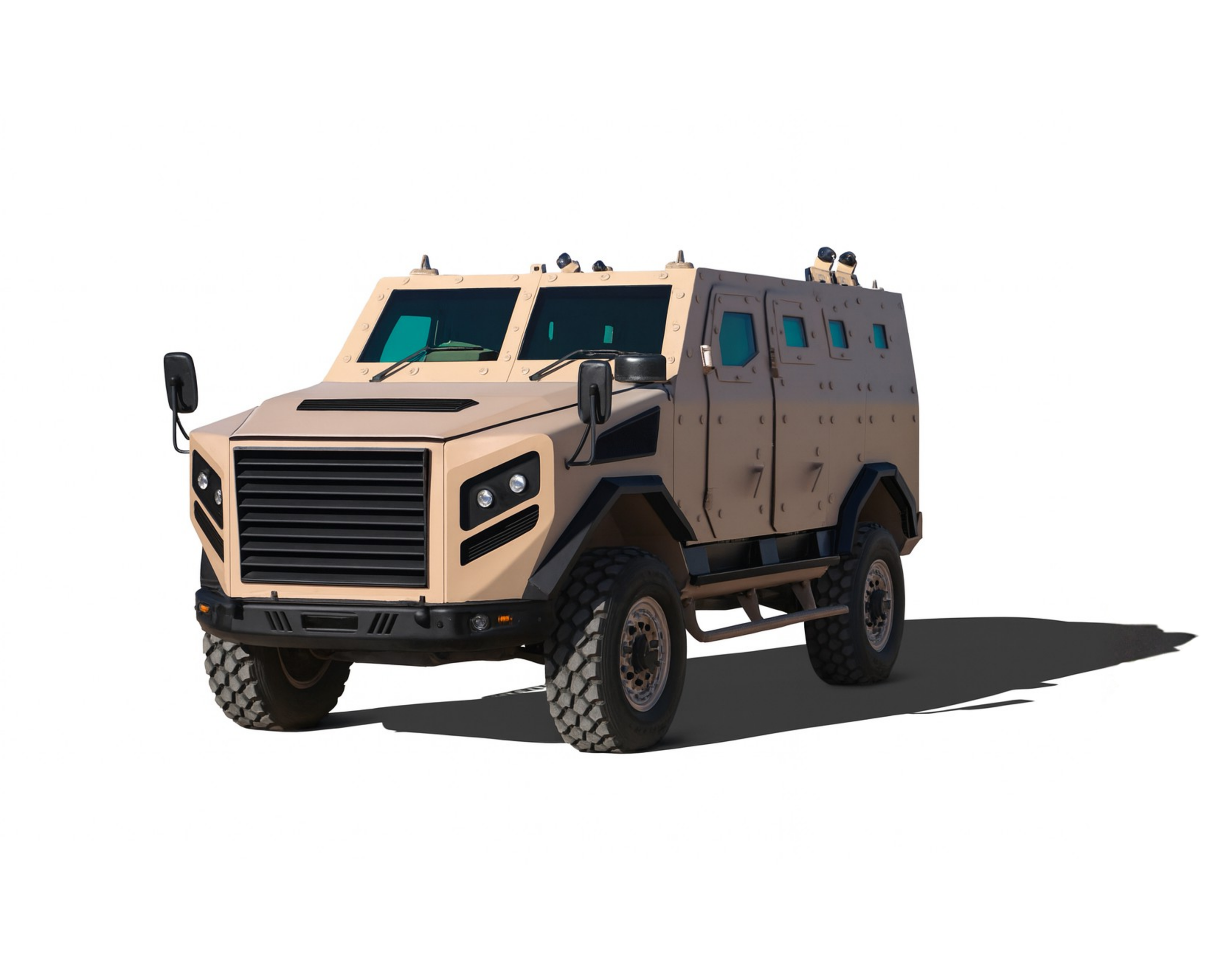

Overview of HMTV

TACTICAL VEHICLE

HIGH MOBILITY

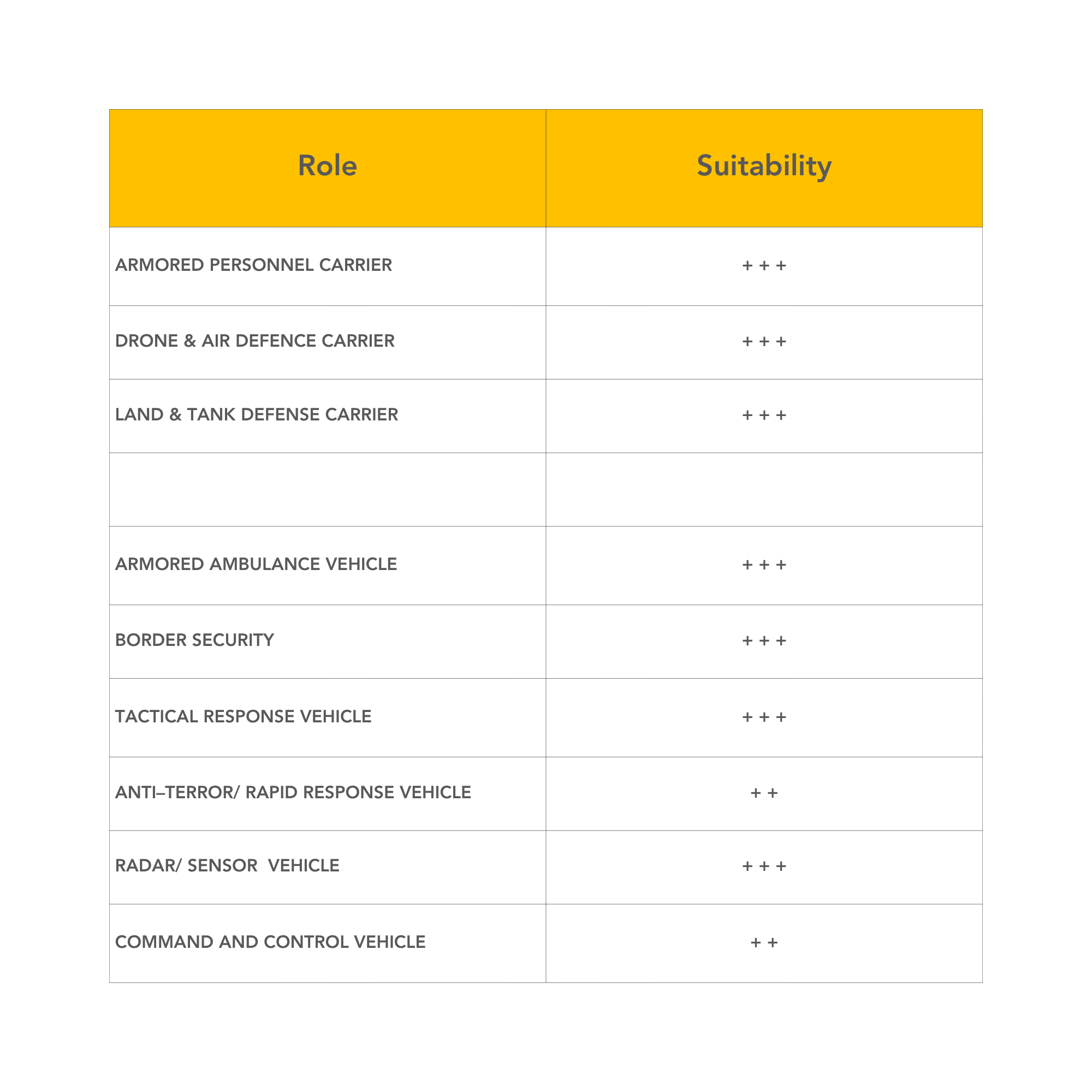

ROLE SUITABILITY

Roll stability graft
ROLE SUITABILITY

TACTICAL VEHICLE

HIGH MOBILITY

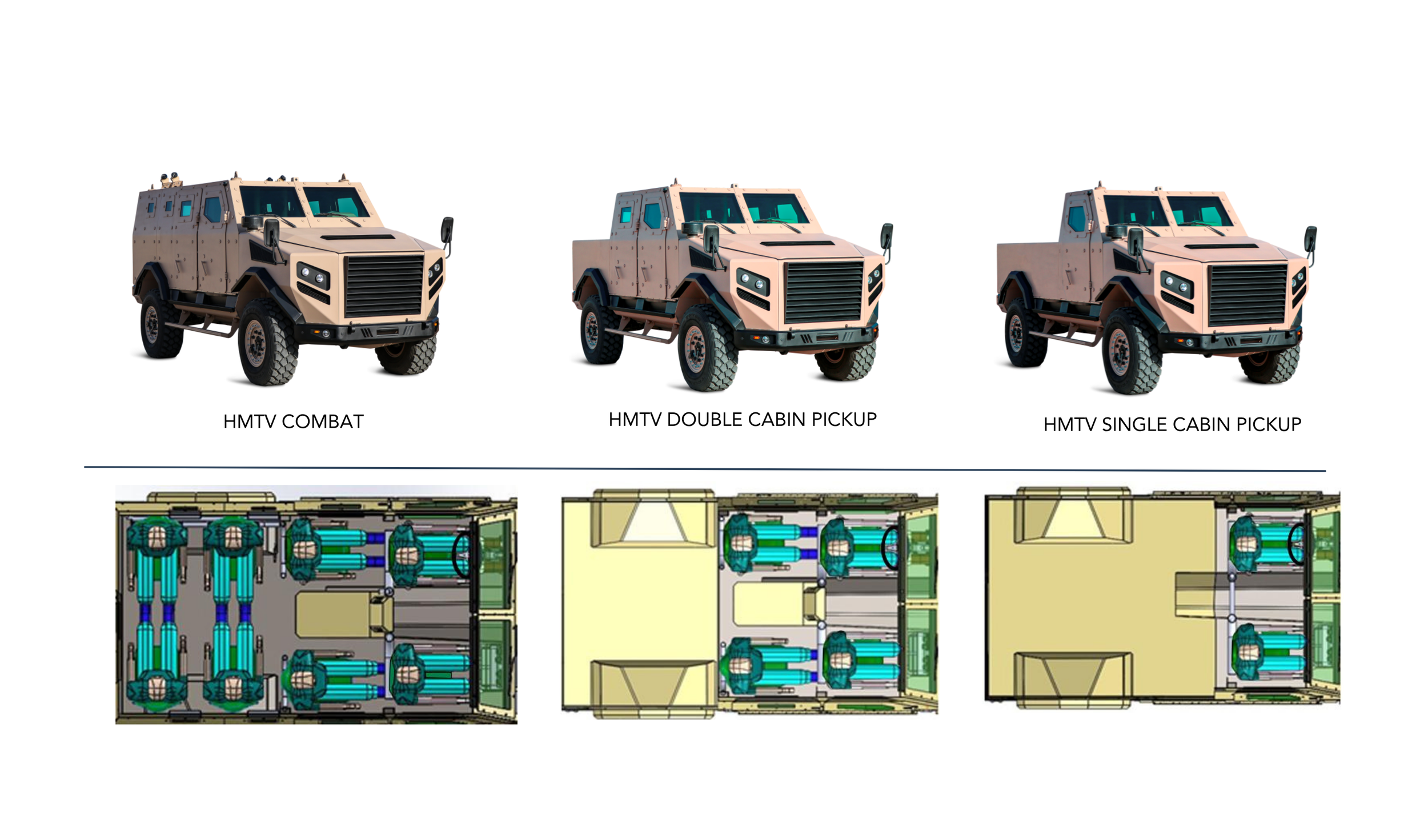

HMTV – VARIANTS OVERVIEW

HIGH MOBILITY

TACTICAL VEHICLE

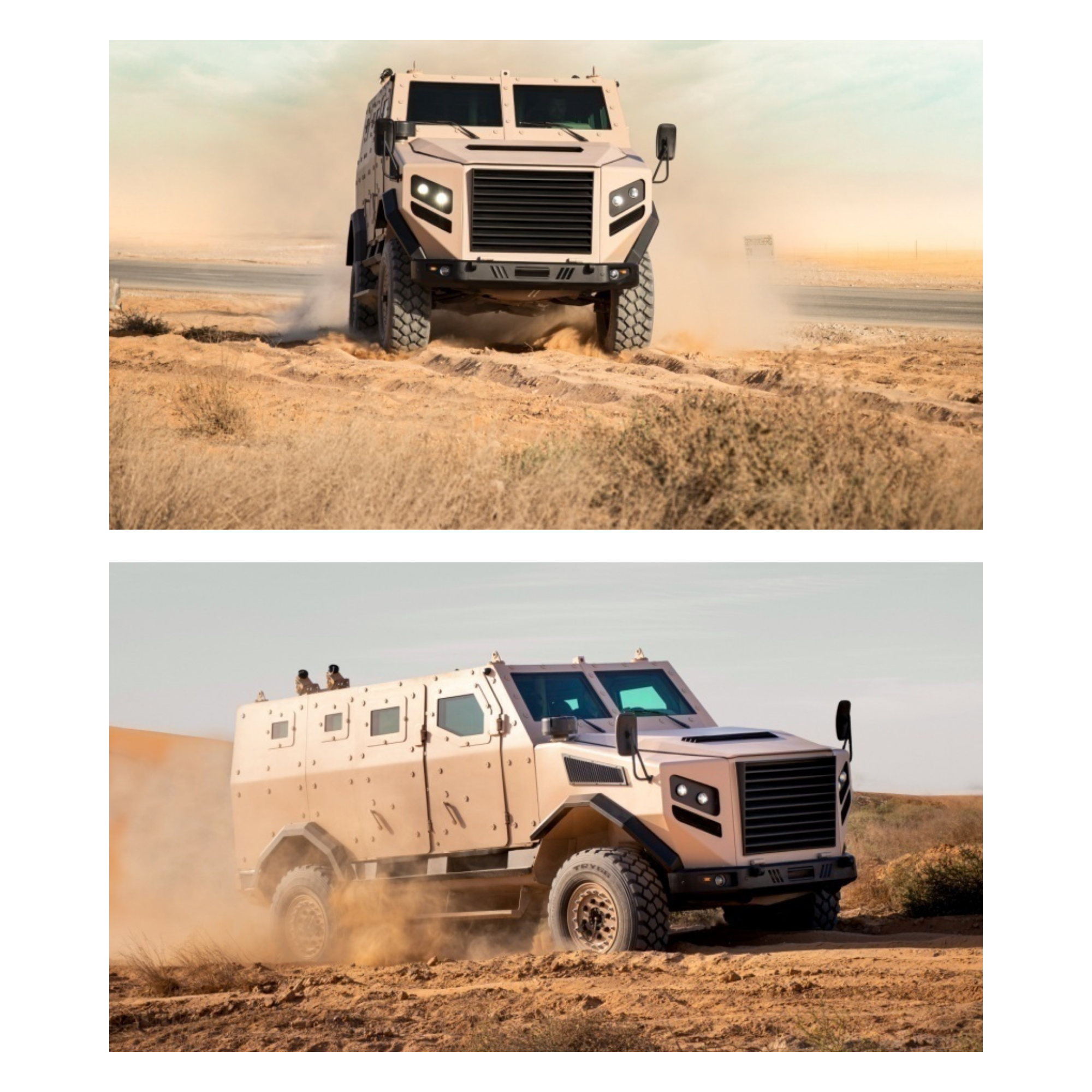

DESIGN AND SAFETY

PROTECTION LEVELS

  • Protected passenger monocoque cell

  • Ballistic protection on passenger cabin is STANAG level 2 as standard with STANAG level 3 optionally available.

  • The blast frame and cabin floor act as a blast attenuating double skin, energy absorbing mechanism and provides exceptional safety characteristics for the occupants of the vehicle.

Mine & IED protection up to STANAG levels 3A & 3B

Protected engine compartment

  • Radiator grill and engine compartment sides protected to STANAG level 2.

  • Bonnet protected to STANAG level 2 at 45 degrees angle of incidence.

DESIGN AND SAFETY

HIGH MOBILITY

TACTICAL VEHICLE

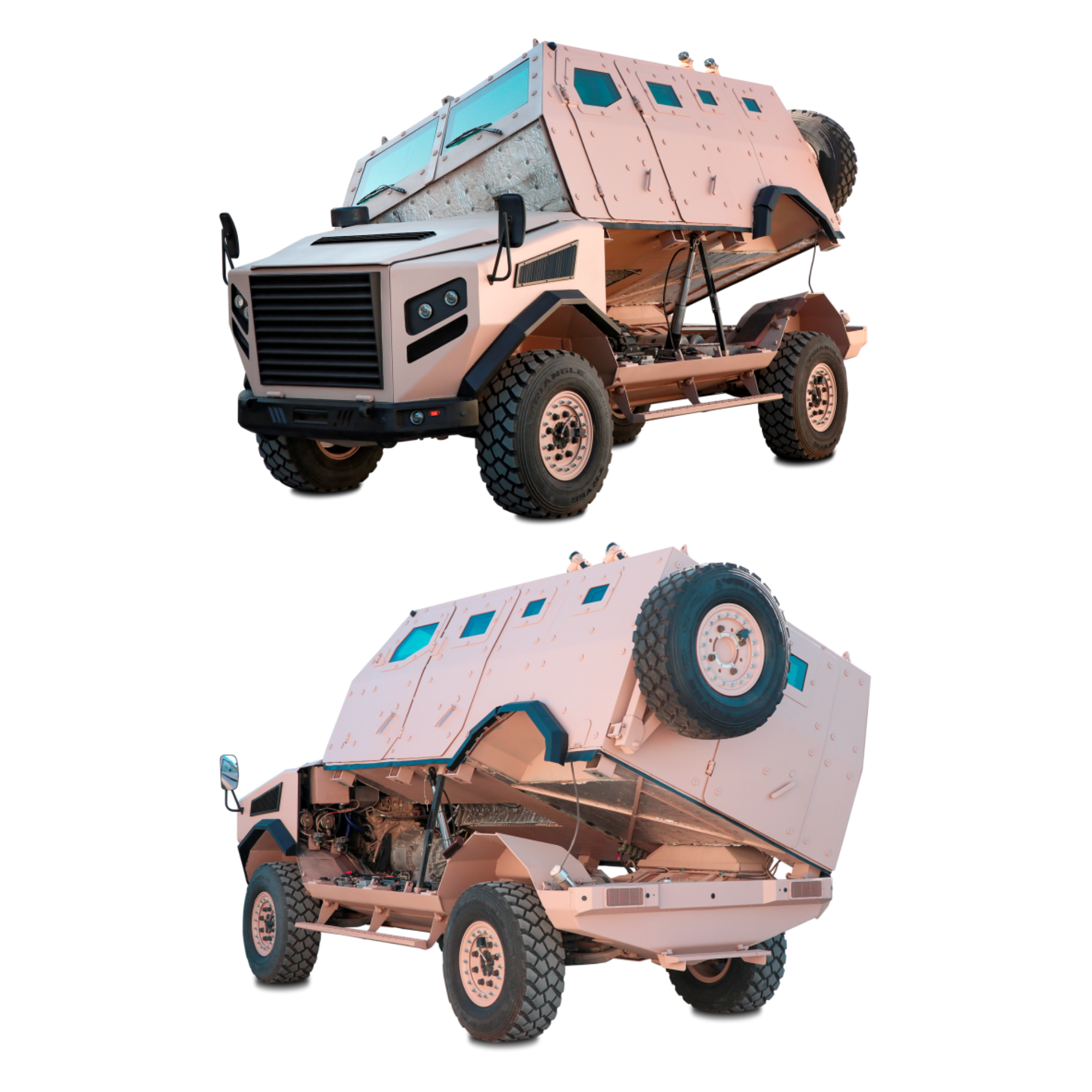

SERVICEABILITY

BEST IN CLASS VEHICLE SERVICEABILITY

  • Our High Mobility Tactical Vehicle (HMTV) offers industry-leading serviceability thanks to its innovative tilting cabin design.

  • The entire cabin can be hydraulically tilted forward, providing rapid, unhindered access to the engine and key drivetrain components. This design reduces maintenance time and complexity, enabling faster diagnostics and repairs compared to competitor models with fixed cabins.

  • Additionally, the cabin tilt system ensures safe and ergonomic servicing conditions, minimizing downtime and support costs.

  • This superior accessibility enhances operational readiness and fleet availability, making our vehicle the clear choice for demanding tactical and support missions.

SERVICEABILITY

HIGH MOBILITY

TACTICAL VEHICLE

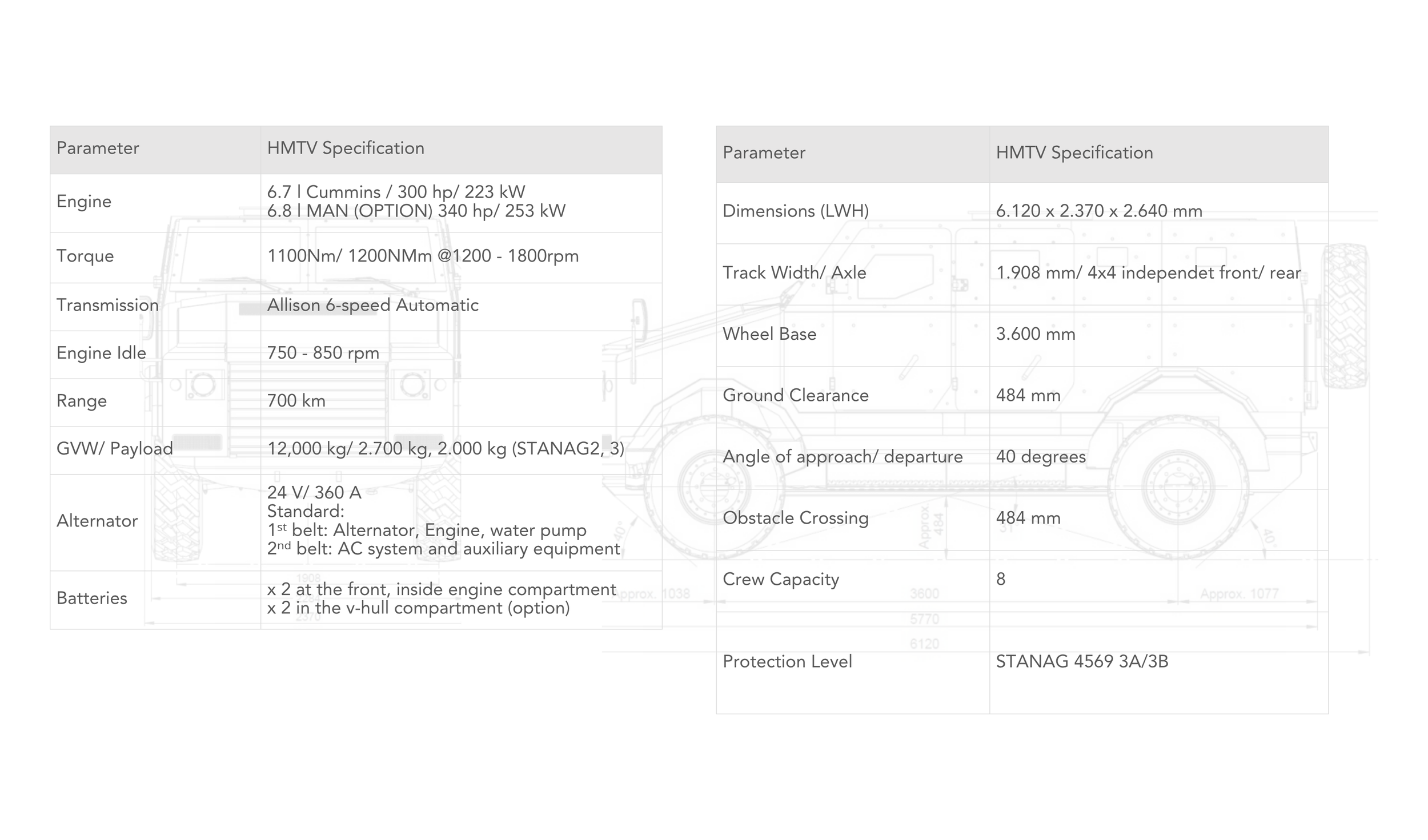

HMTV – TECHNICAL SPECIFICATIONS

HMTV – TECHNICAL SPECIFICATIONS

HIGH MOBILITY

TACTICAL VEHICLE

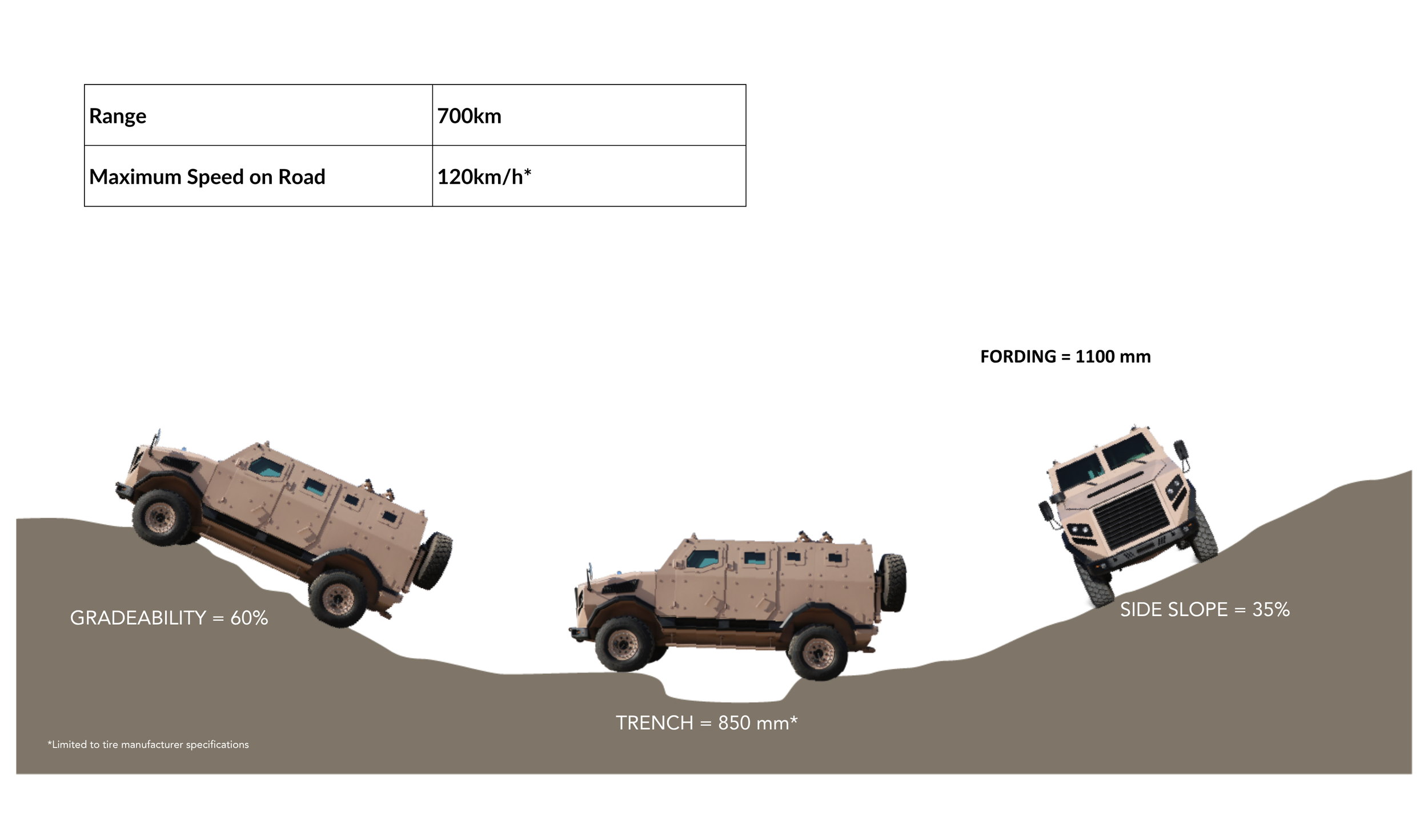

PERFORMANCE HMTV STANDARD

HMTV – TECHNICAL SPECIFICATIONS

PERFORMANCE HMTV STANDARD

HIGH MOBILITY

TACTICAL VEHICLE

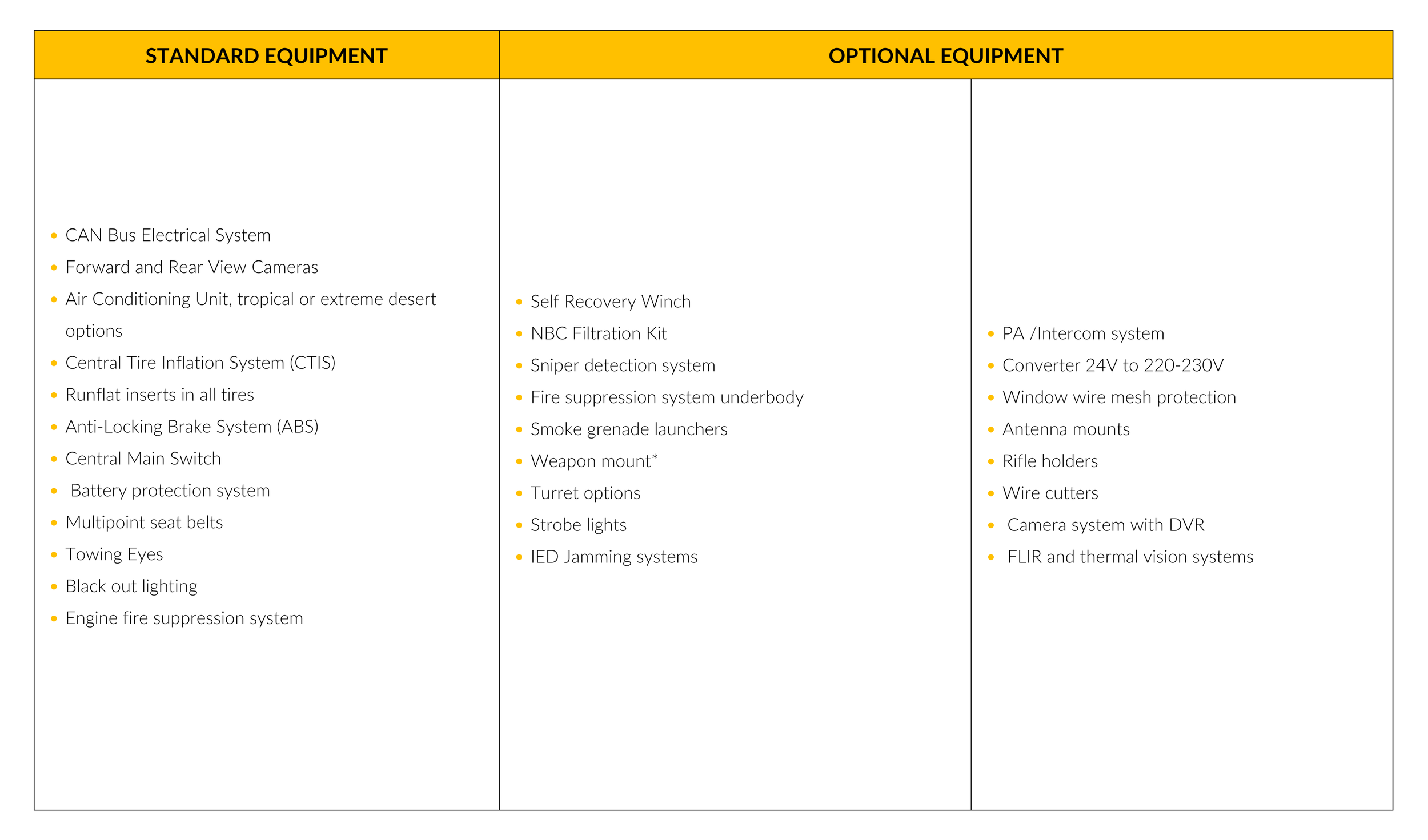

HMTV –  STANDARD AND OPTIONAL EQUIPMENTS

HMTV –  STANDARD AND OPTIONAL EQUIPMENTS

HIGH MOBILITY

TACTICAL VEHICLE

HMTV transported

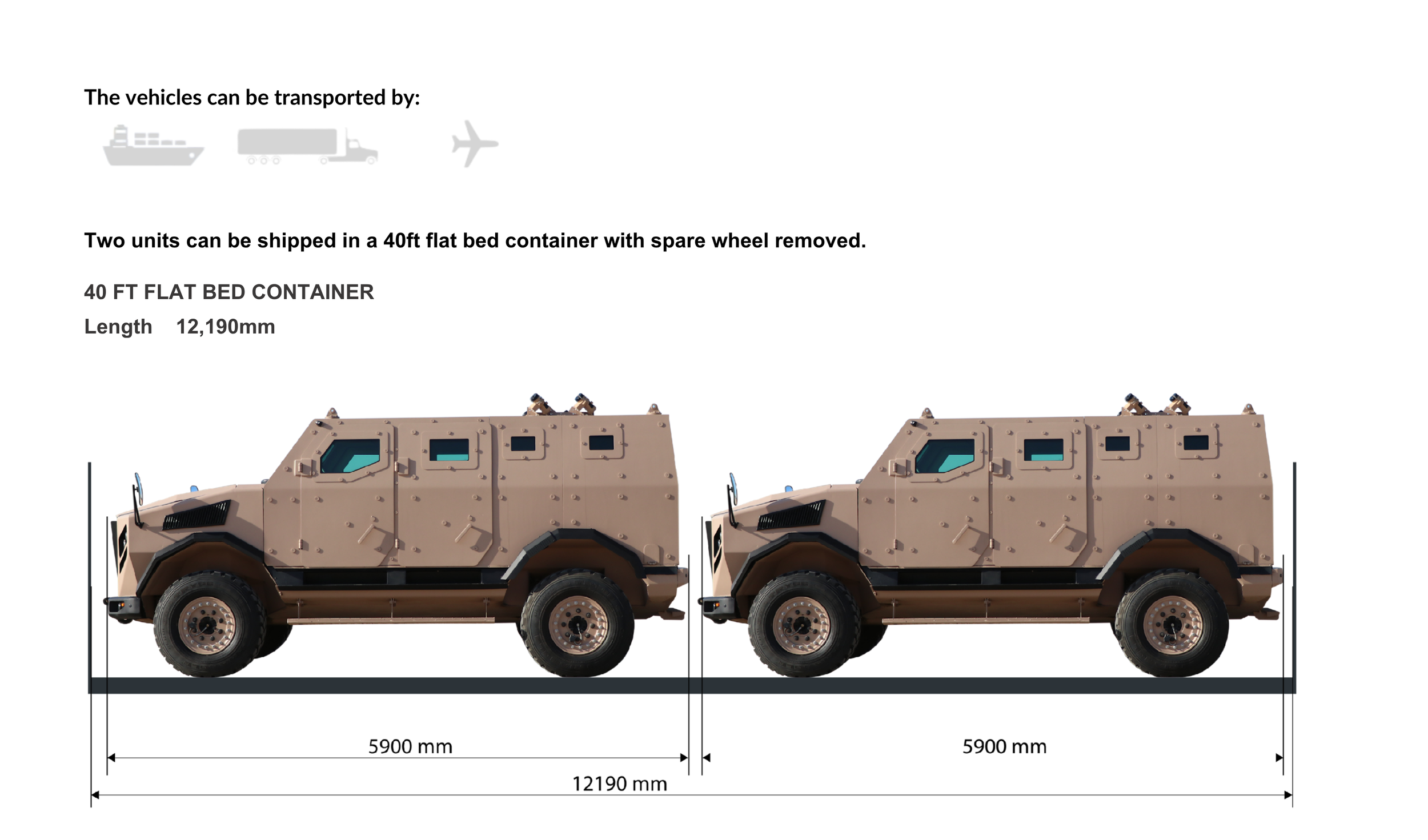

HMTV –  TRANSPORTATION

POLICE & MILITARY

OPTIONAL FEATURES

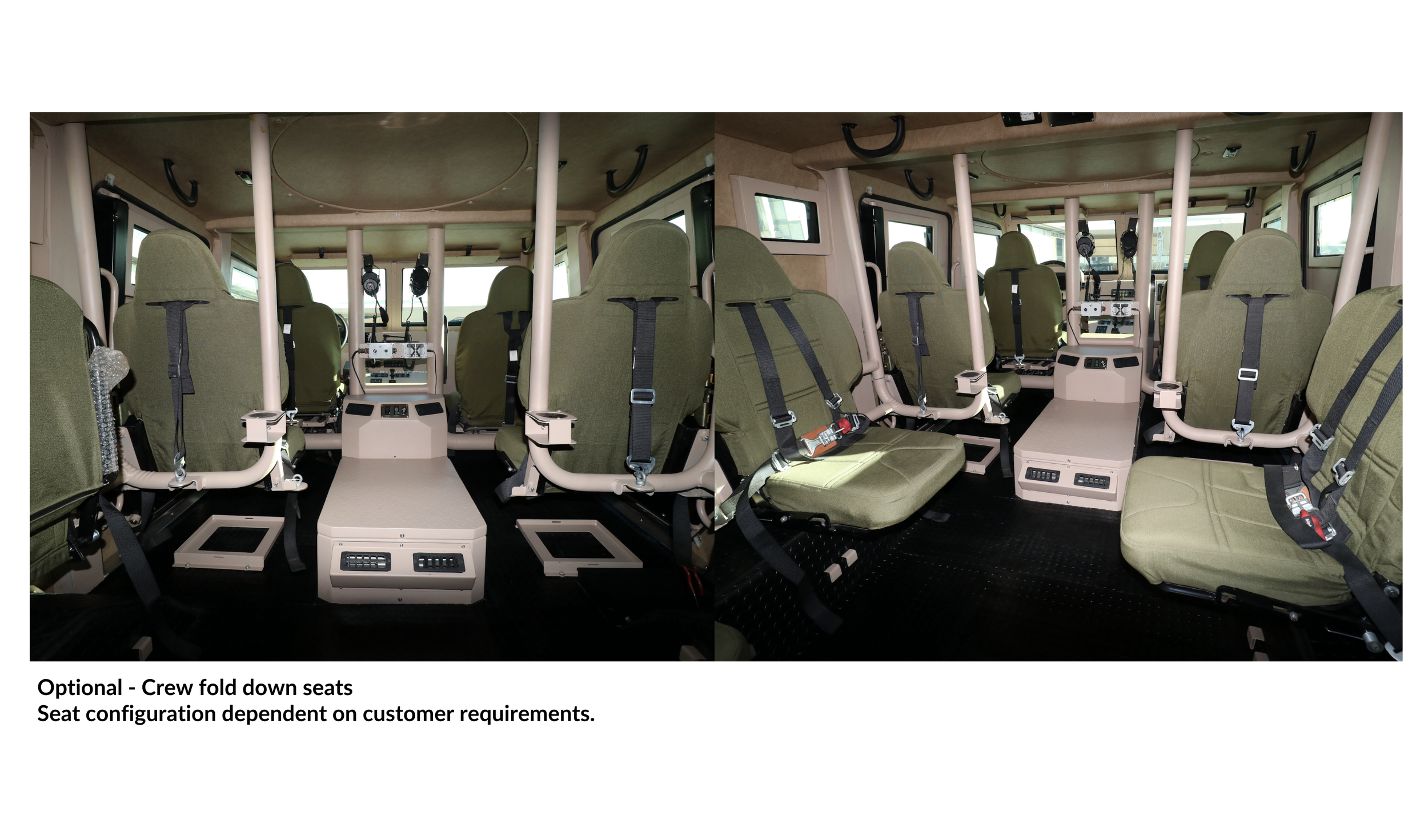

MINE BLAST CERTIFIED SEATS

POLICE & MILITARY

OPTIONAL FEATURES

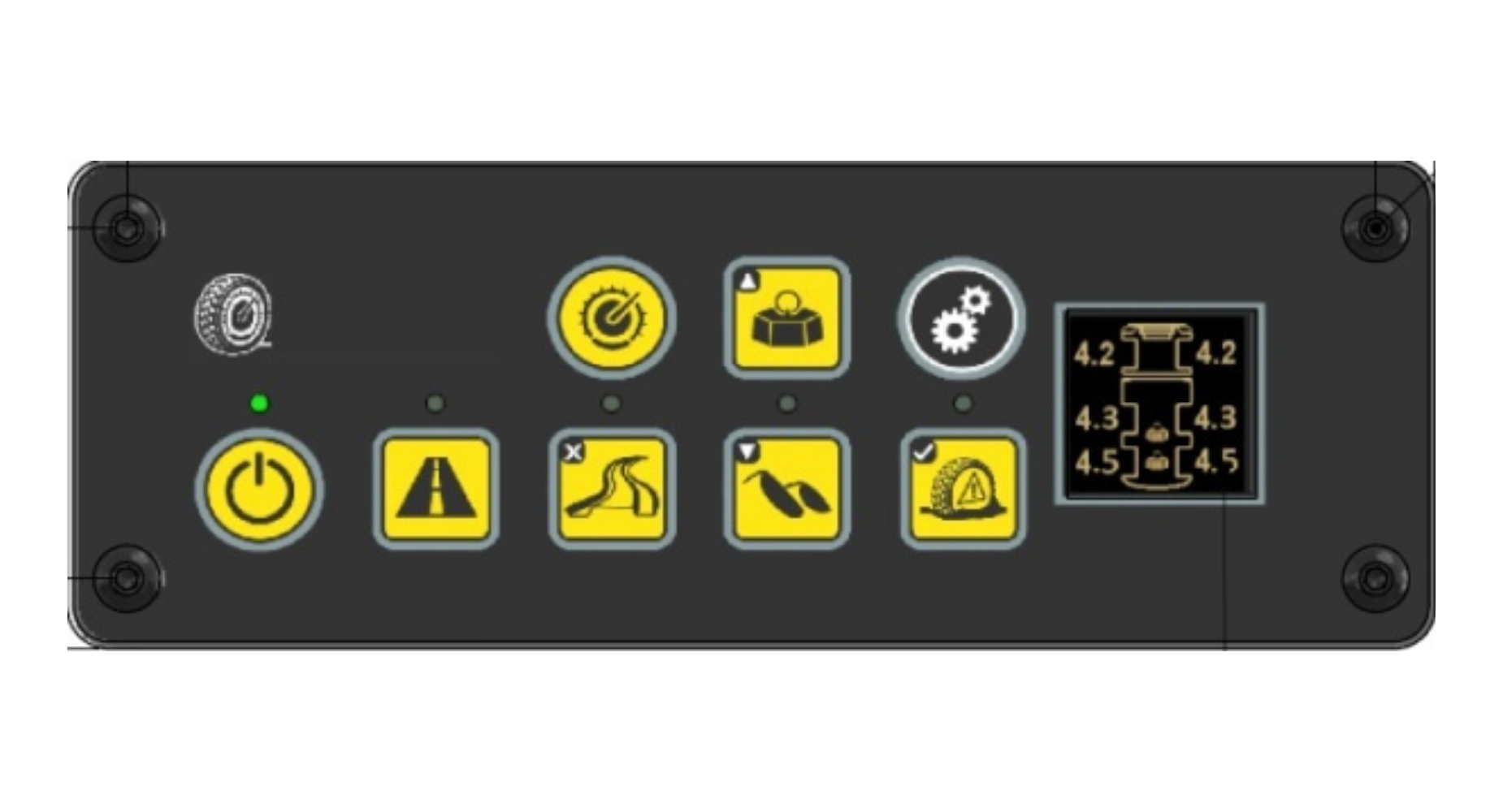

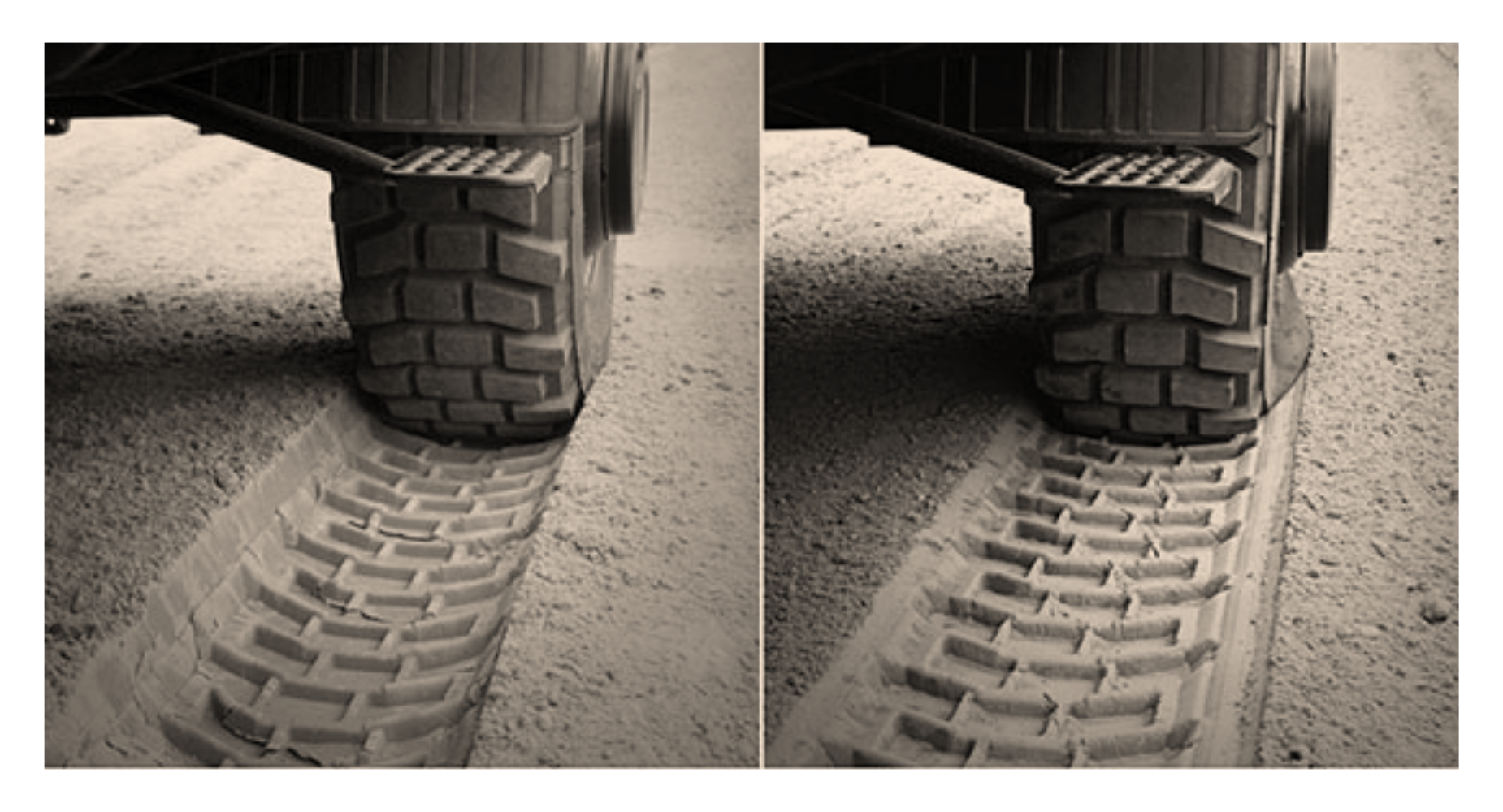

CENTRAL TIRE INFLATION SYSTEM (CTIS)

CTIS is standard on all HMTV model vehicles and allows for the continuous monitoring and control of tire pressure at each wheel.

Monitoring and control can be performed either a stationary position or on the move.

Control of tire pressure allows control over vehicle ground contact and thereby allows optimization of vehicle mobility control over a range of surface conditions.

Predefined functions are set for: Road, Cross Country and Sand

Modifications are permitted for load and speed.

PRODUCTIVITY

  • Potential for added fuel economy

  • Reduce terrain damage (compaction)

  • Increase tire life-span

  • Optimize all-terrain low pressure tire performance

SECURITY AND COMFORT

  • Detection and compensation of flats in-motion

  • Reduces tire blow out risk

  • Decreases shock and vibrations

VEHICLE MOBILITY

  • Progression through difficult terrain

  • Crossing soft grounds (sand dunes, wetlands)

  • Limits skidding

*CTIS - Central Tire Inflation System

POLICE & MILITARY

OPTIONAL FEATURES

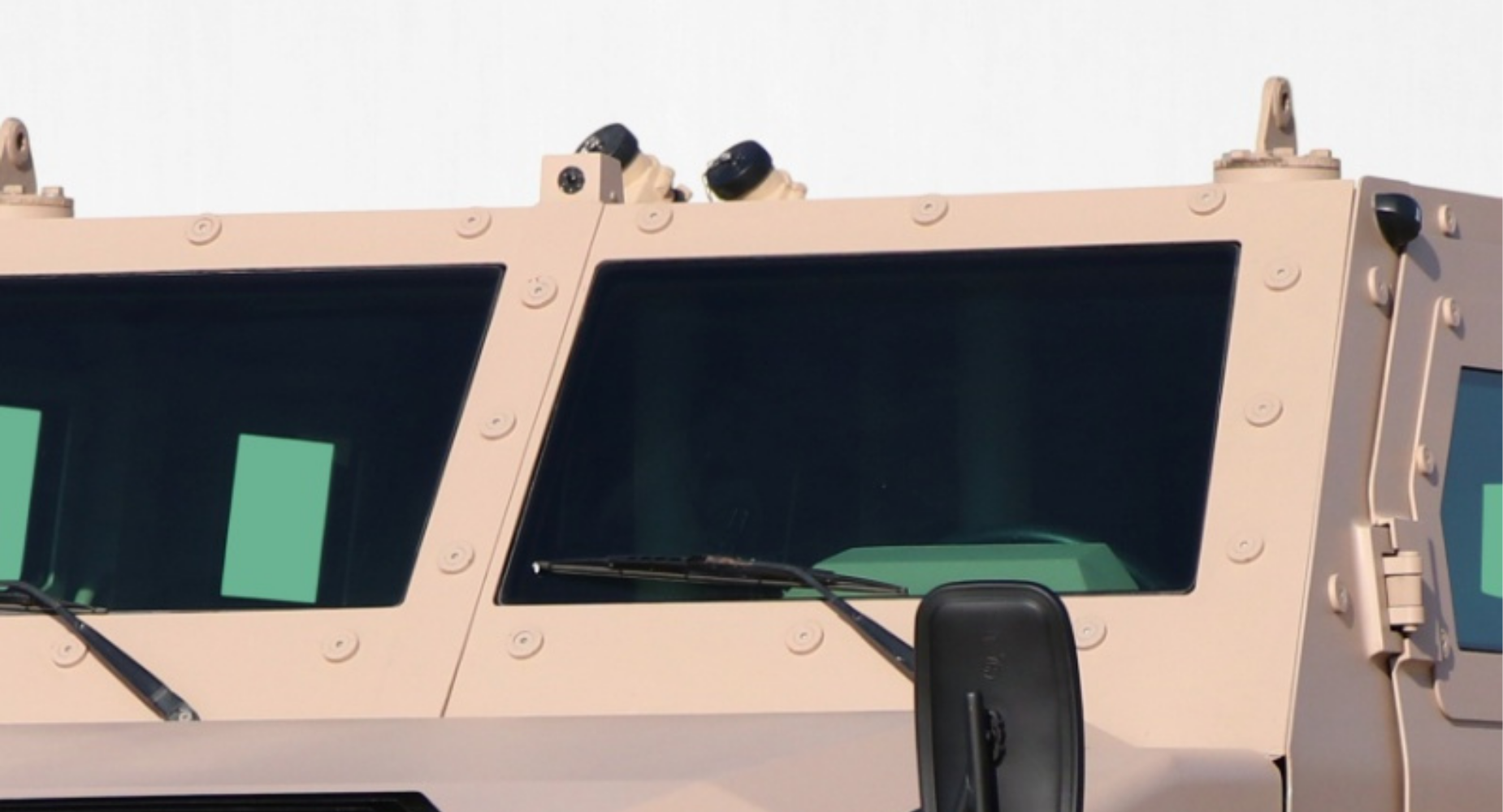

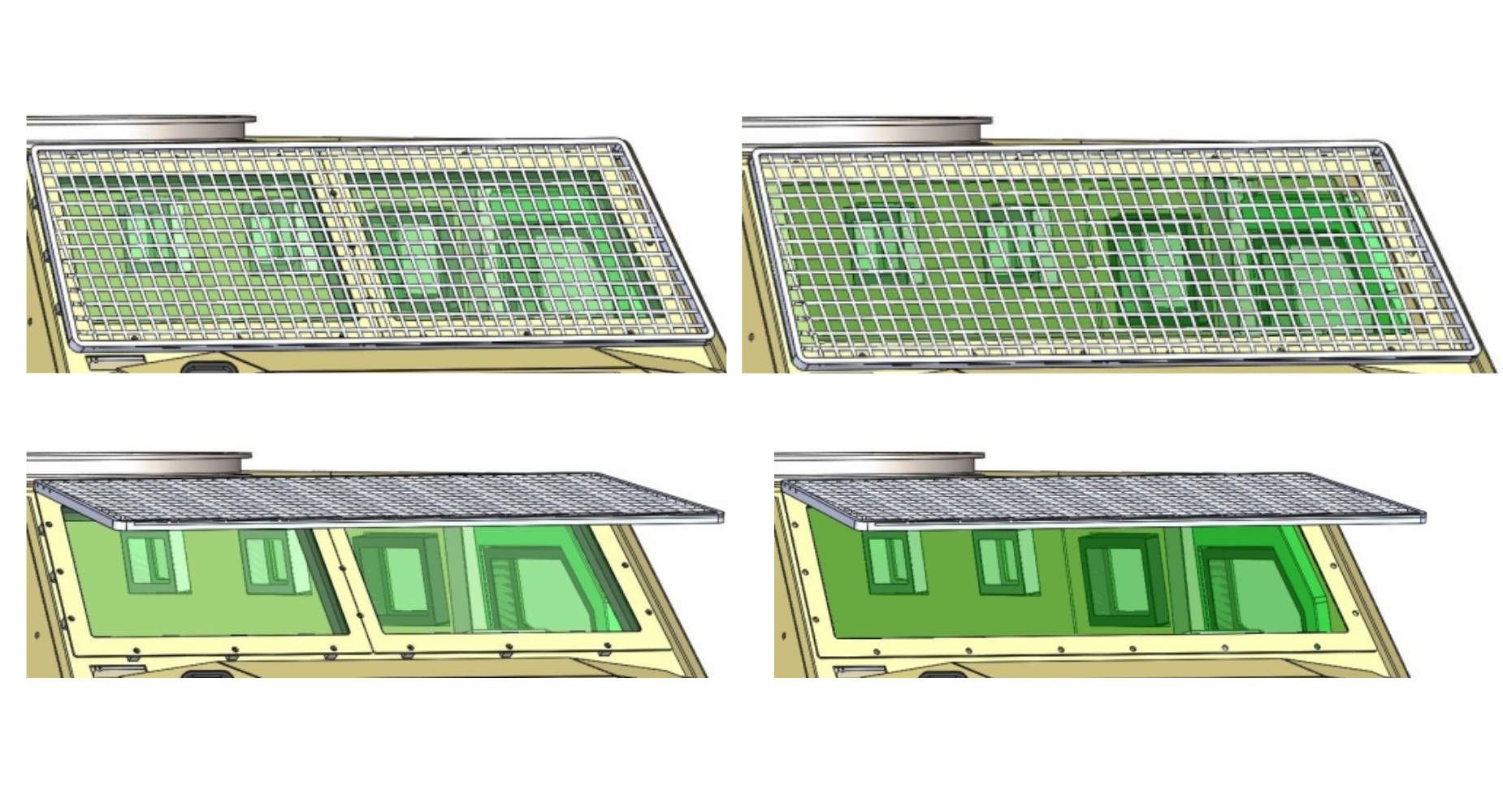

BALLISTIC GLASS OPTIONS

Windshield

  • Split windshield - 2 part (standard)

Windshield options

  • Split windshield - 2 part (standard)

  • Single windshield (option)

Wire mesh protection option

  • Operable wire mesh on all glass provides an easy access for cleaning of the ballistic glass.

  • The wire mesh is hinged and features a locking mechanism.

POLICE & MILITARY

OPTIONAL FEATURES

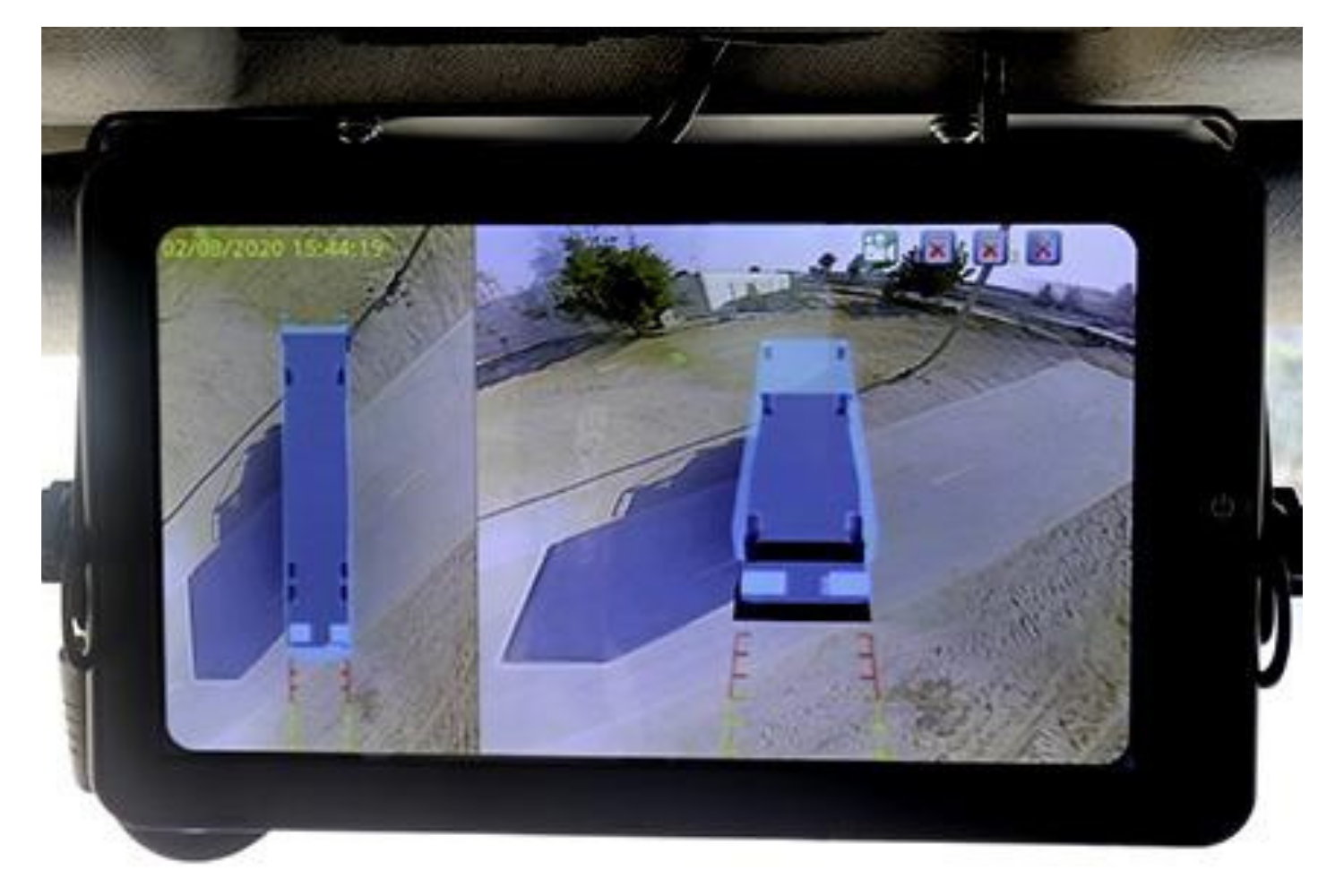

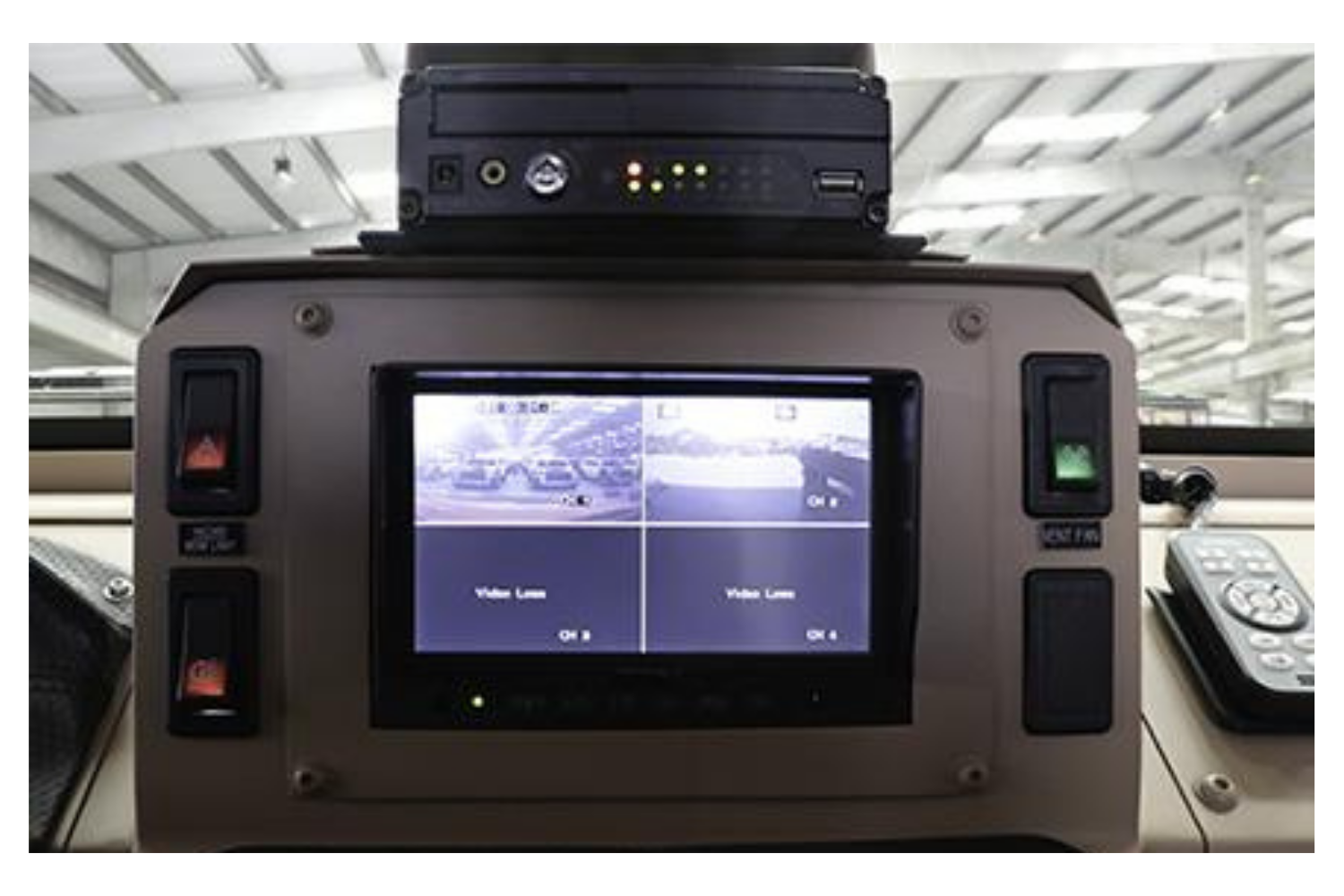

BALLISTIC GLASS OPTIONSCAMERA SYSTEM WITH RECORDING DEVICE OPTION & GPS SENSOR CAMERA SYSTEM

System Options:

  • Front camera x1

  • Rear camera x1

  • Right side camera x1

  • Left side camera x1

  • Monitor 7” x1

  • DVR (4 channel) x1

  • Full Surround System

  • Events Recording Hdd + Smart Card

  • Protected Camera

  • High Resolution

  • 360O Option

POLICE & MILITARY

OPTIONAL FEATURES

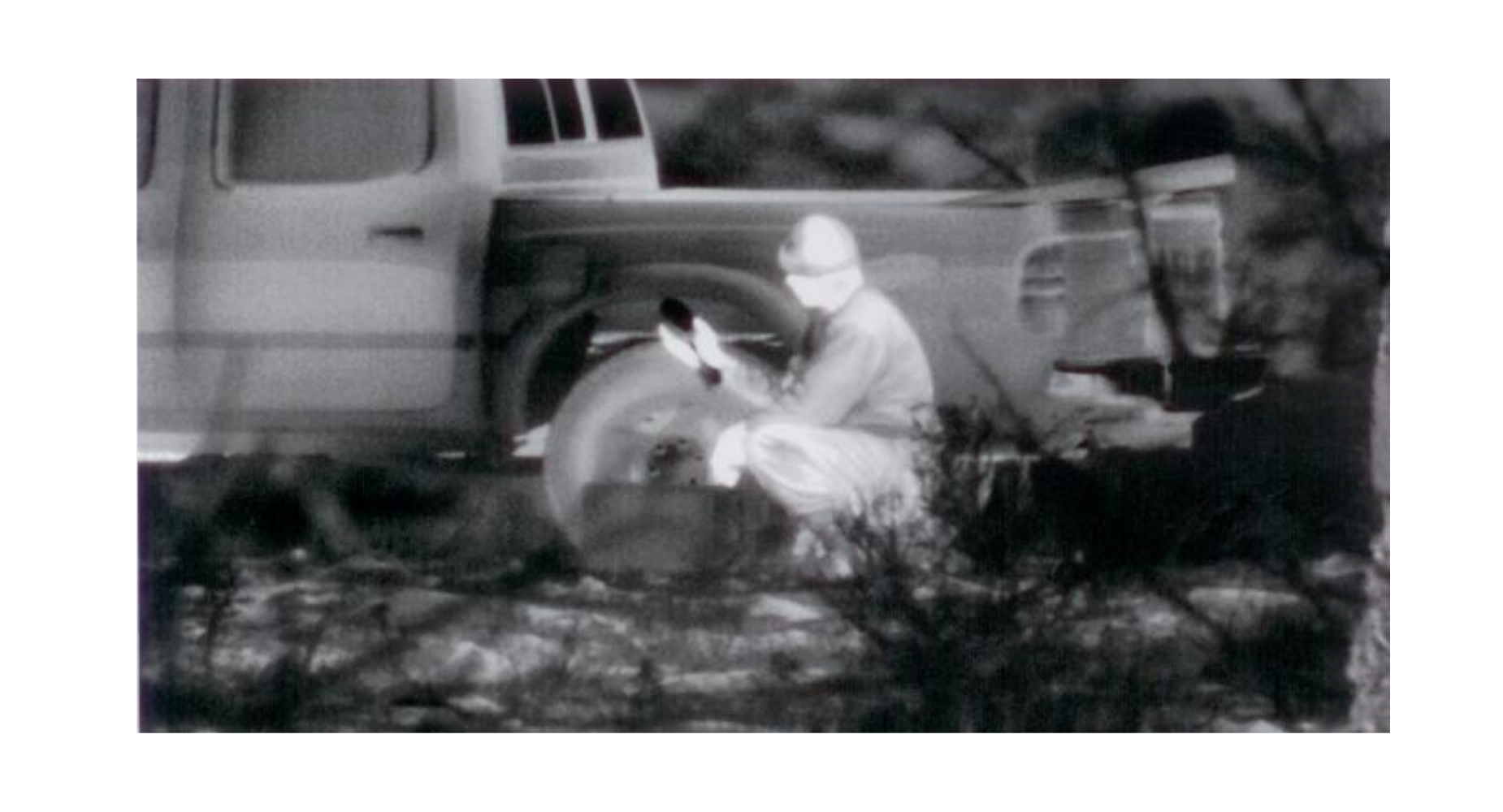

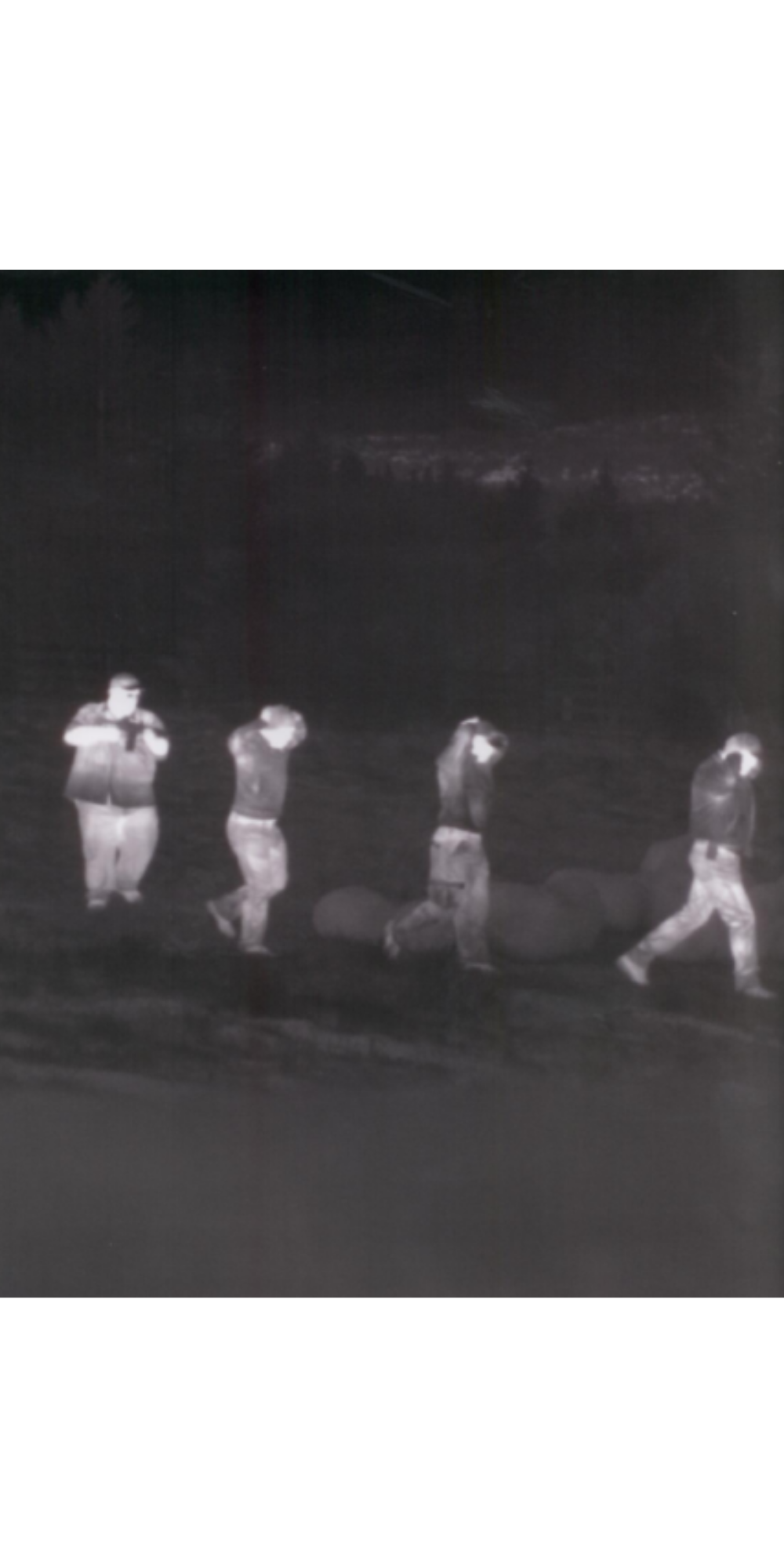

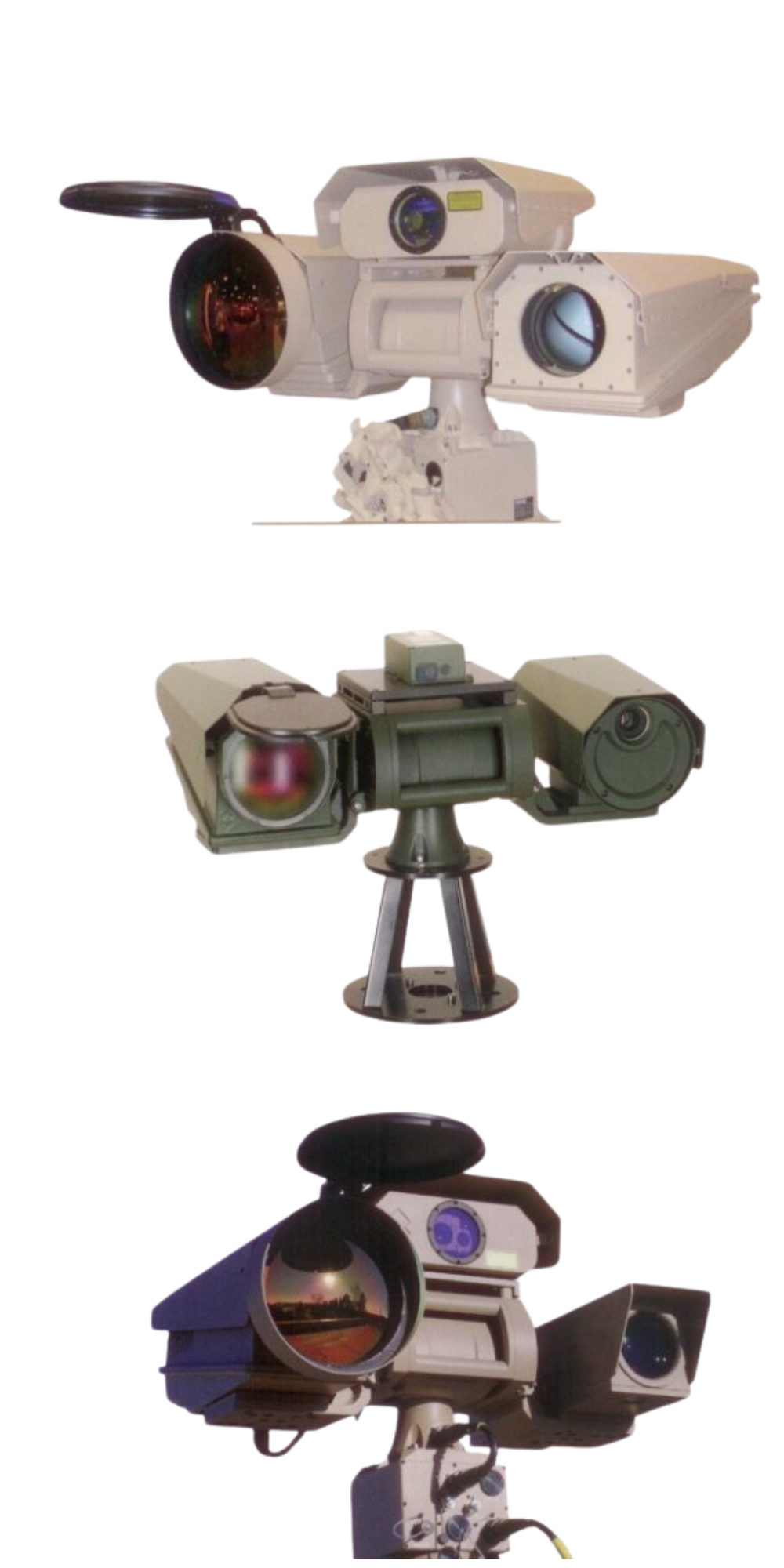

THERMAL INFRARED CAMERA System

Thermal (Infrared) Camera Installation:

  • Condition Monitoring & Surveillance

  • Night Vision

  • Military & Police Target Detection & Acquisition

POLICE & MILITARY

OPTIONAL FEATURES

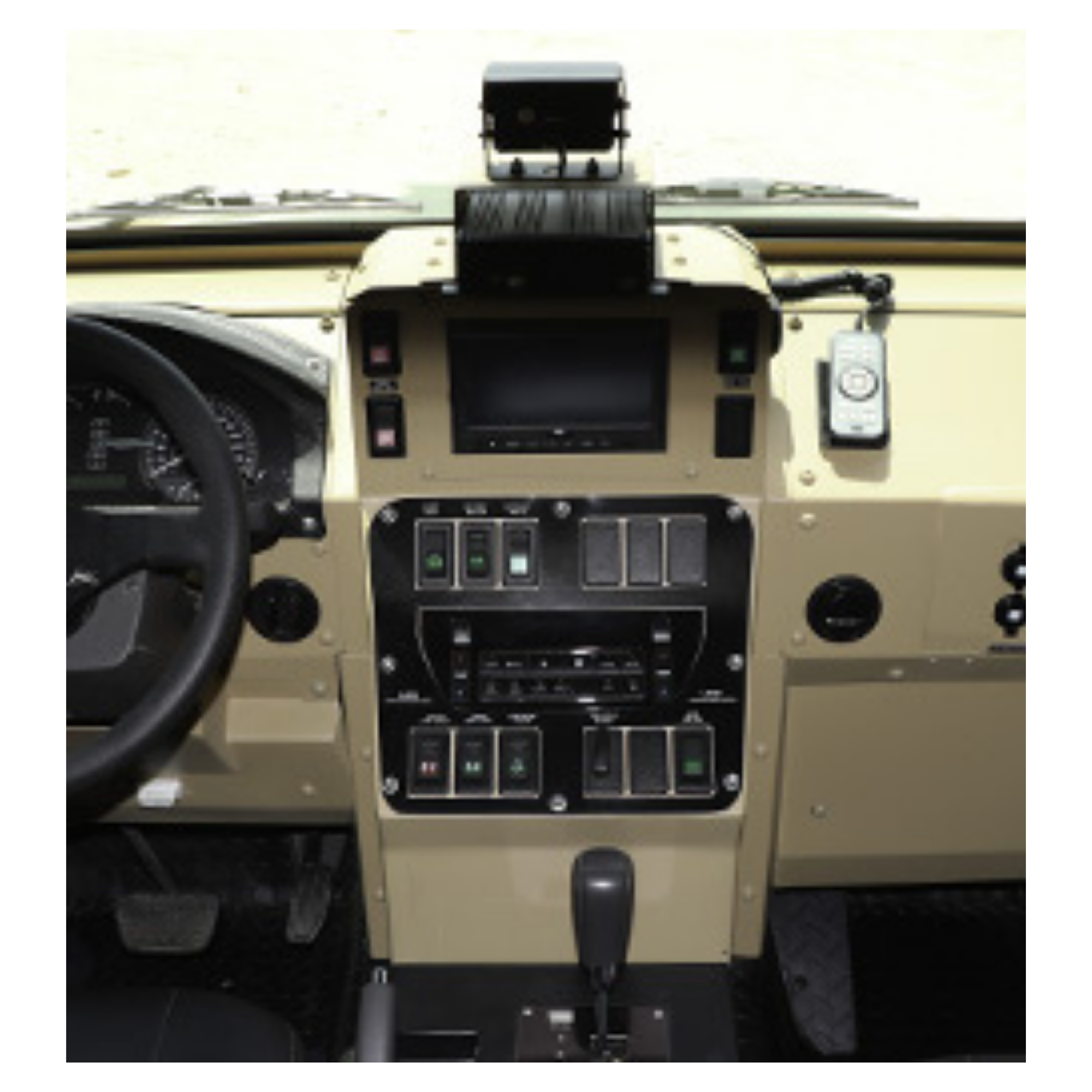

COMMUNICATION EQUIPMENT INSTALLATION

  • Communication equipment controls may be located on the centre console and dashboard or as per customer requirements.

  • Radios, navigation control panel, weapon station controls, gunner control panel, commander control panel and other communication equipment are commonly fitted in the crew compartment close to user. This type of equipment is user specific and determined on order for precise integration.

TRAINING & SUPPORT

AFTER SALES SERVICES

MILITARY & POLICE

TRAINING

As part of any fleet order, training is included at no additional cost

  • Driver operator training program (2 drivers per vehicle – 7 days)

  • Maintenance training program (1 technician per 3 vehicles – 7 days)

TECHNICAL DOCUMENTATION

All vehicles are provided with

  • Operators manuals

  • Service and maintenance manuals

  • Online parts catalogue & parts ordering application

  • 10 years parts availability guarantee

SPARE PARTS AND AFTER-SALES SUPPORT

  • After-sales support is available 12/6

  • Traveling technicians are available for in field support

  • Transparent parts pricing and OEM part numbers disclosed

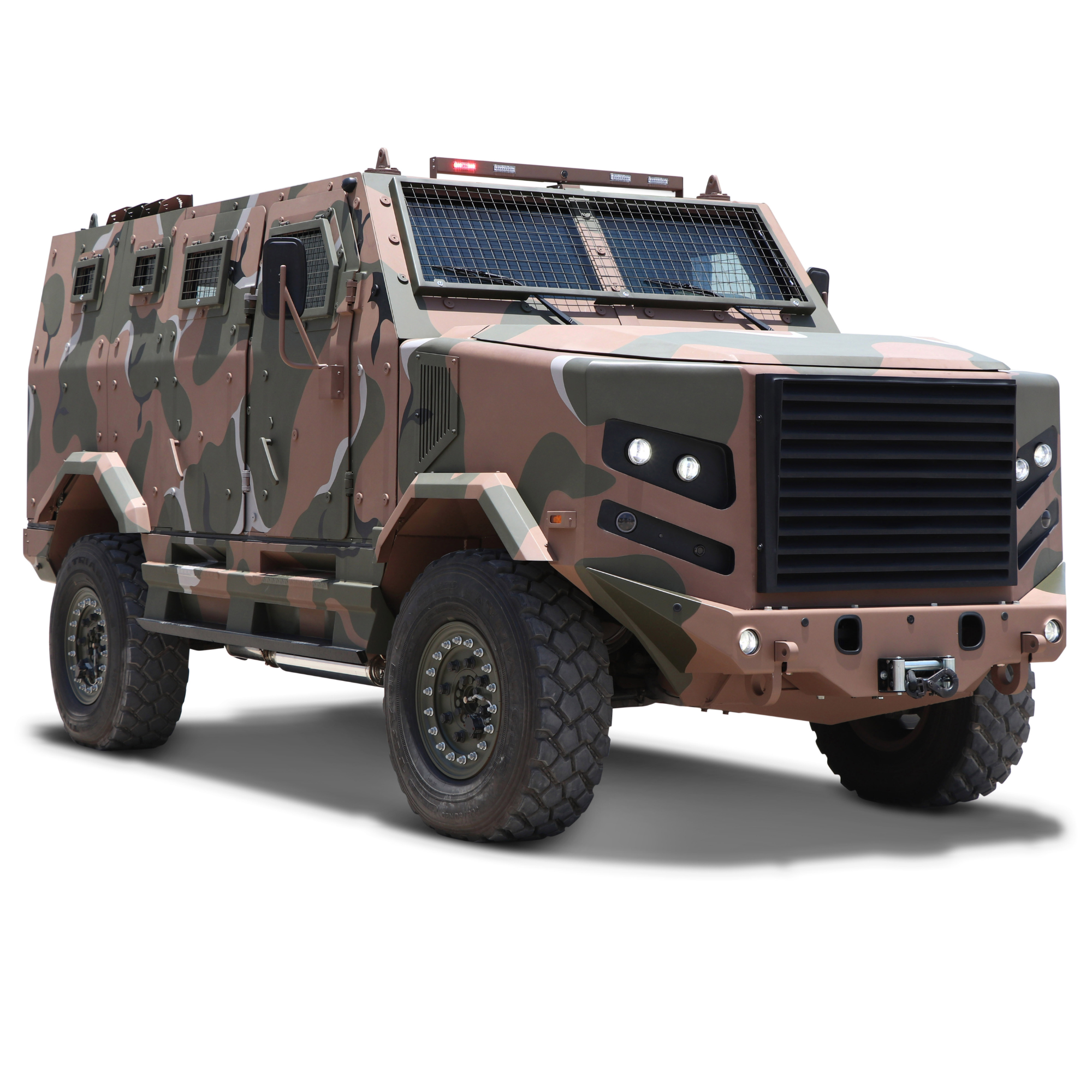

In military and police version of the HMTV
